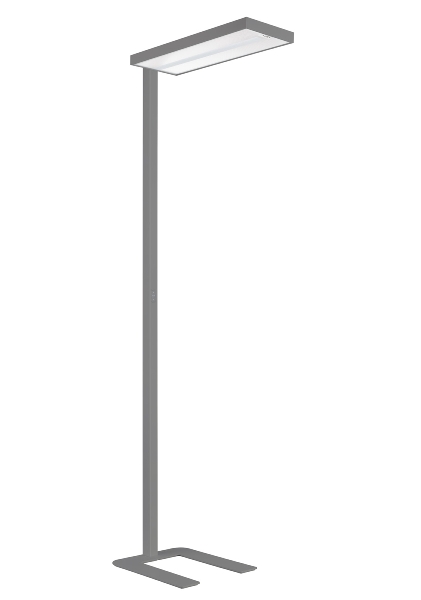

FS486F 125S/940 PSD-T ACL U SI CCH - SmartBalance FFS Gen2 - Sharp Edges - Philips
Availability:
More items are on the way
PU at 1 pcs
Item details
Manufacturer:
PHILIPS
Item No.:
39912
GTIN:
8720169585652
Wattage (W):
90
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
90-100
Luminous Flux (lm):
12500
Beam Angle (°):
100
Life Time (h):
100000
Dimmable:
Yes
Energy Consumption (kWh/1000h):
90
Size (LxWxH in mm):
90x450x2000
Ambient Temperature:
+10 bis +35°C
IP protection class:
20
Protection Class:
I
Impact protection (IK):
02
Flammability mark:
Zur Montage auf normal entflammbaren Oberflächen
Photobiological risk group:
1
Light source replaceable:
No
Control interface:
DALI
Casing color:
Silber
Casing material:
Aluminium
Mounting method:
Stehleuchte
Operating device:
Netzteil mit DALI-Tastschalter und Dimm-Schnittstelle
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
0,05% (50.000 h / 25°C)
Color Consistency (SDCM):
<3
Light Output:
direkt/indirekt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
15% (50.000 h / 25°C)
Light Distribution:
symmetrisch
Strobe Effect Value (SVM):
0
Wiring Type:
Elektrischer Anschluss mit Stecksystem
Cover Material:
Kunststoff opal
Application area:
Office and building lighting
- Open plan and self-contained offices
- Lighting for reading
