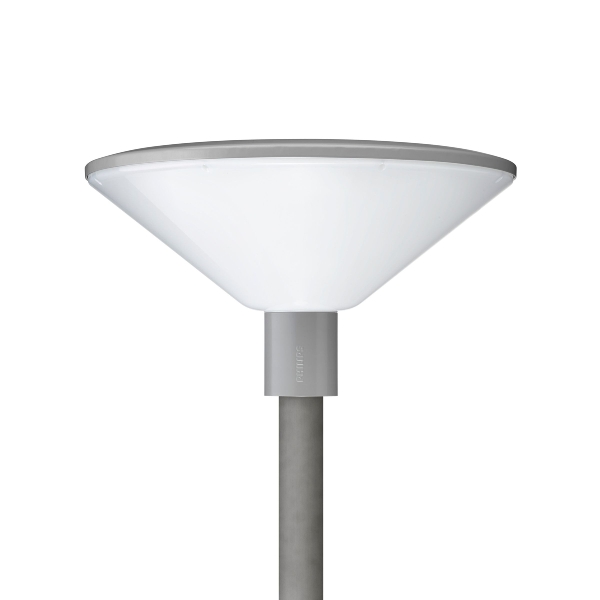

BDP102 LED50/830 II DS PCF SI CLO-DDF1 6 - PHILIPS

TownGuide Performer - PHILIPS

Availability: More items are on the way

Net price:

Net Price: 276.62 € *

+0.08 € WEEE fee

Gross price: 329.27 €

Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.

Unit: pcs

* All prices excl. VAT and excl. Shipping.

Item details

Manufacturer:

PHILIPS

Item No.:

43384

GTIN:

8718291906223

Product family:

TownGuide Performer - PHILIPS

Wattage (W):

32,5

Voltage (V):

220-240

Frequency (Hz):

50-60

Colour Temperature (K):

3000

Light Color:

Warm White

Colour Rendering Index (Ra):

Luminous Flux (lm):

1900

Beam Angle (°):

Life Time (h):

100000

Dimmable:

Yes

Diameter (mm):

570

Size (LxWxH in mm):

570x570x317

Ambient Temperature:

-40 … +35°C

IP protection class:

Protection Class:

Impact protection (IK):

Flammability mark:

Control interface:

Programmierbare (über DALI oder NFC) Stand-Alone-Dimmung

Casing color:

Silber

Casing material:

Aluminium

Mounting method:

Aufsatz

Operating device:

Netzteil mit DynaDimmer und konstantem Lichtstrom (integriert)

Control Gear included:

Yes

Failure rate aver. usage time/°C temp.:

5% (50.000 h / 25 °C)

Color Consistency (SDCM):

Luminous Efficiency (lm/W):

Luminous flux decline
aver. usage time/°C temp.:

4% (50.000 h / 25 °C)

Max. No. Luminaires Circuit Breaker:

10 (B16) und 17 (C16)

No. Of Poles:

Wiring Type:

Abschluss

Cover Material:

Kunststoff, satiniert

Item description

The TownGuide Performer luminaire family includes five modern luminaire types: flat cone (BDP100), trough (BDP101), classic cone (BDP102), classic mushroom (BDP103) and modern cylinder (BDP104). All models are available in both clear and frosted versions. A wide selection of light outputs, light colors and different service lives enables targeted adaptation to specific application requirements. In addition, various control options such as LumiStep, DynaDimmer, the SDU switch-dim control and remote connectivity via CityTouch are available. Installation is particularly easy thanks to a bayonet connection with integrated cable gland, so that the luminaire does not have to be opened. The entire luminaire family has been designed to minimize operating costs and enables significant savings compared to conventional lighting thanks to compatibility with numerous control systems.

Application area:

Street, city and exterior lighting

- Pedestrian zones and squares
