BDP104 LED30/740 II DM PCC SI CLO-LS-8 6 - PHILIPS

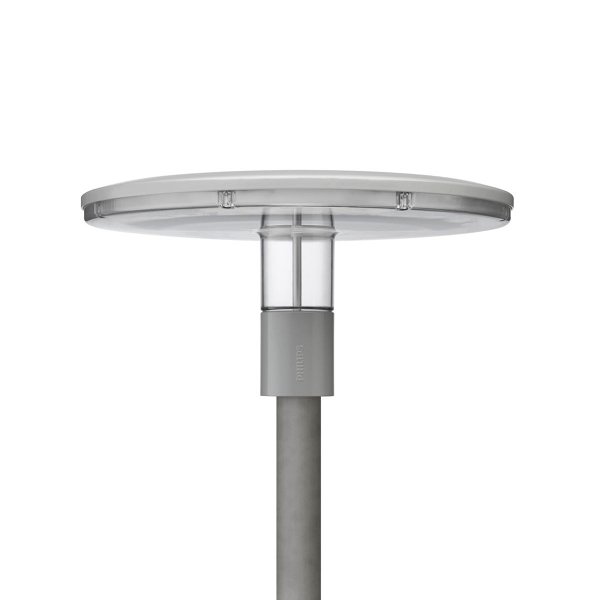

TownGuide Performer - PHILIPS
Availability:
More items are on the way
Net price:
Net Price:
281.62 € *
+0.08 € WEEE fee
Gross price: 335.22 €
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: pcs
*
All prices excl. VAT and excl. Shipping.
Item details
Manufacturer:
PHILIPS
Item No.:
43378
GTIN:
8718291906230
Product family:
TownGuide Performer - PHILIPS
Wattage (W):
19,6
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
70
Luminous Flux (lm):
2204
Beam Angle (°):
53x71
Life Time (h):
100000
Dimmable:
Yes
Diameter (mm):
570
Size (LxWxH in mm):
570x570x277
Ambient Temperature:
-40 … +35°C
IP protection class:
66
Protection Class:
II
Impact protection (IK):
10
Flammability mark:
-
Control interface:
-
Casing color:
Silber
Casing material:
Aluminium
Mounting method:
Aufsatz
Operating device:
Netzteil mit DynaDimmer und konstantem Lichtstrom (integriert)
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
5% (50.000 h / 25 °C)
Color Consistency (SDCM):
=5
Luminous Efficiency (lm/W):
115
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
3% (100.000 h / 25 °C)
Max. No. Luminaires Circuit Breaker:
26 (B16) und 44 (C16)
No. Of Poles:
2
Wiring Type:
Abschluss
Cover Material:
Kunststoff, klar
Item description
• The family includes five modern luminaire types - flat cone (BDP100), bowl (BDP101), classic cone (BDP102), classic mushroom (BDP103), modern cylinder (BDP104).
• All models are available in clear and frosted finishes.
• Wide choice of light outputs, light colours and different lifetimes to suit specific application requirements.
• Options such as LumiStep, DynaDimmer, SDU switch-dimming control and remote connectivity with CityTouch
• Thanks to the bayonet connection with integrated cable gland, the luminaire does not need to be opened for installation.
• Designed to keep running costs to a minimum.
• Offers significant savings compared to conventional lighting through compatibility with numerous control systems
• All models are available in clear and frosted finishes.
• Wide choice of light outputs, light colours and different lifetimes to suit specific application requirements.
• Options such as LumiStep, DynaDimmer, SDU switch-dimming control and remote connectivity with CityTouch
• Thanks to the bayonet connection with integrated cable gland, the luminaire does not need to be opened for installation.
• Designed to keep running costs to a minimum.
• Offers significant savings compared to conventional lighting through compatibility with numerous control systems
Application area:
Street, city and exterior lighting
- Pedestrian zones and squares
