BGP235 LED30-4S/740 DSM11 D9 MIO-CIO MBQ - PHILIPS
Item No.: 43316
BGP235 LED30-4S/740 DSM11 D9 MIO-CIO MBQ - PHILIPS
TubePoint Gen2 - PHILIPS
Availability:
More items are on the way
Net price:
Net Price:
352.18 € *
+0.08 € WEEE fee
Gross price: 419.19 €
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: pcs
*
All prices excl. VAT and excl. Shipping.
Item details
EEL:
D
Manufacturer:
PHILIPS
Item No.:
43316
GTIN:
8718699482909
Product family:
TubePoint Gen2 - PHILIPS
Wattage (W):
18,8
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
70
Luminous Flux (lm):
2520
Beam Angle (°):
101x158
Life Time (h):
100000
Dimmable:
Yes
Size (LxWxH in mm):
363,5x485,5x89,5
Ambient Temperature:
-30 … +50°C
IP protection class:
66
Protection Class:
I
Impact protection (IK):
09
Flammability mark:
Zur Montage auf normal entflammbaren Oberflächen (F-Zeichen)
Control interface:
DALI-regelbar
Casing material:
Aluminiumdruckguss
Mounting method:
Lichtbandkonfiguration
Operating device:
Netzteil mit DALI-Schnittstelle
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
10% (100.000 h / 25 °C)
Color Consistency (SDCM):
=3
Luminous Efficiency (lm/W):
133
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
2% (100.000 h / 25 °C)
Max. No. Luminaires Circuit Breaker:
26 (B16)
No. Of Poles:
5
Wiring Type:
mit Durchgangsverdrahtung
Cover Material:
Glas, klar
Item description

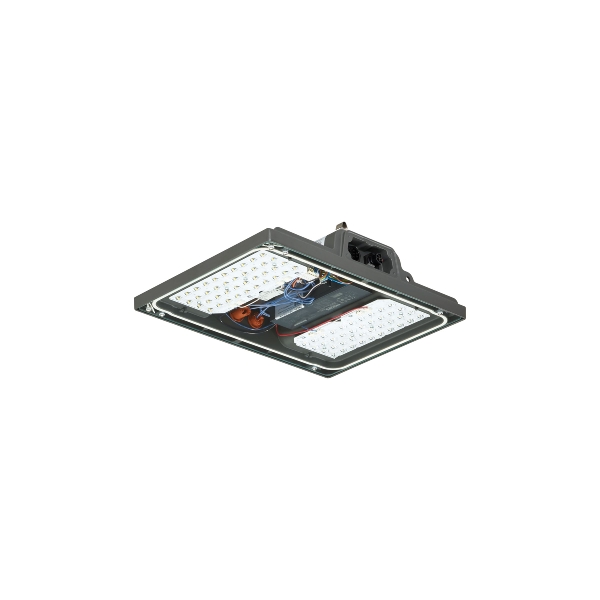

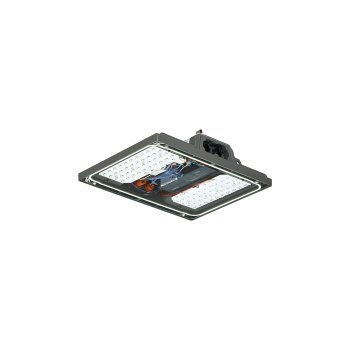

TubePoint Gen2 tunnel and underpass lighting features a state-of-the-art LED architecture that is not only cost-effective but also versatile. They meet the most stringent tunnel lighting requirements and offer a long service life while maintaining high performance and low maintenance costs. Each luminaire is equipped with a Service Tag, a QR-based identification system that provides quick access to important information on maintenance, installation and spare parts
Application area:
Street, city and exterior lighting
- Underpasses and tunnels
