BVP130 LED210-4S/740 PSU S ALU C1KC3 - Philips
Item No.: 41160

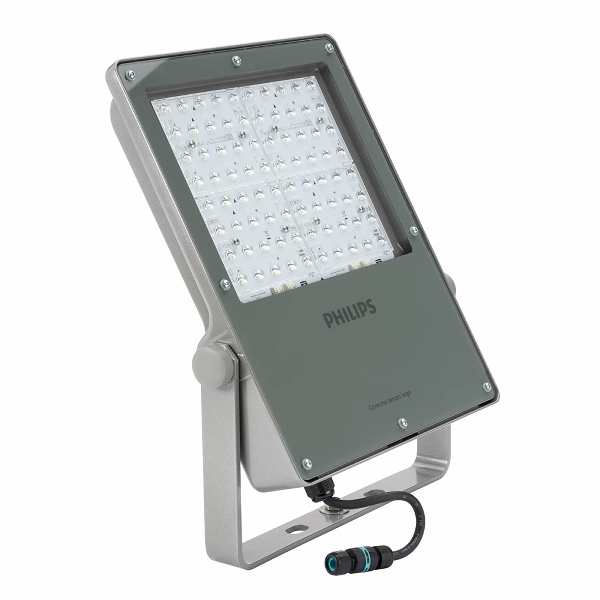

BVP130 LED210-4S/740 PSU S ALU C1KC3 - Philips
CoreLine Tempo Large
Availability:
More items are on the way
Net price:
Net Price:
235.80 € *
+0.08 € WEEE fee
Gross price: 280.70 €
per pcs
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
PU at 1 pcs
*
All prices excl. VAT and excl. Shipping.
Item details
Manufacturer:
PHILIPS
Item No.:
41160
GTIN:
8718699096434
Product family:
CoreLine Tempo Large
Wattage (W):
164
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
70-79
Luminous Flux (lm):
21000
Luminous intensity:
1495
Beam Angle (°):
70x21
Life Time (h):
70000
Dimmable:
No
Size (LxWxH in mm):
340,5x422x40
Ambient Temperature:
-40° bis +35°C
IP protection class:
66
Protection Class:
I
Impact protection (IK):
08
Flammability mark:
Zur Montage auf leicht entflammbaren Oberflächen
Photobiological risk group:
1
Light source replaceable:
No
Casing color:
Grau
Casing material:
Aluminium, pulverbeschichtet, gebürstet
Mounting method:
• Anbaumontage
• Wand-, Traversen- und Podest-/Bodenmontage
Operating device:
LED-Betriebsgerät stromgesteuert
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
10% (100.000 h / 25°C)
Glare restriction (UGR):
0
Color Consistency (SDCM):
<3
Total Harmonic Distortion (THD):
5,03
Luminous Efficiency (lm/W):
130
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
96% (100.000 h / 25°C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
7 (B16) und 11 (C16)
Integrated emergency power supply:
No
No. Of Poles:
3
Strobe Effect Value (SVM):
0,07
Wiring Type:
Abschluss
Cover Material:
Glas transparent
Item description
Advantages of the BVP130 LED210-4S/740 PSU S ALU C1KC3 from the CoreLine Tempo Large product family:
• Short payback period: energy savings of up to 66%
• Low maintenance thanks to long service life
• Compact, robust and very flat luminaire housing
• Highly efficient with 130 lm/W at a continuously adjustable system luminous flux of 21,000 lm
• Developed for 1:1 replacement of conventional floodlights with high-pressure discharge lamps up to 400 W
• Symmetrical distribution optics
• External IP68 plug-in connection
• Overvoltage protection: 6 kV
• Suitable for VDU workstations in accordance with EN 12464-1
• Pivotable
• Suitable for number of lamps = 80
• Replaceable control gear
• Suitable for surface, wall and traverse mounting as well as for pedestal/floor mounting
Areas of application
Open spaces and sports facilities, industrial areas and loading zones, building facades, advertising panels
• Short payback period: energy savings of up to 66%
• Low maintenance thanks to long service life
• Compact, robust and very flat luminaire housing
• Highly efficient with 130 lm/W at a continuously adjustable system luminous flux of 21,000 lm
• Developed for 1:1 replacement of conventional floodlights with high-pressure discharge lamps up to 400 W
• Symmetrical distribution optics
• External IP68 plug-in connection
• Overvoltage protection: 6 kV
• Suitable for VDU workstations in accordance with EN 12464-1
• Pivotable
• Suitable for number of lamps = 80
• Replaceable control gear
• Suitable for surface, wall and traverse mounting as well as for pedestal/floor mounting
Areas of application
Open spaces and sports facilities, industrial areas and loading zones, building facades, advertising panels
Application area:
Entertainment, culture and sport
- Theme parks and amusement parks
- Sports facilities and arenas
Industry and manufactoring trade
- Storage, hall and logistics lighting
Street, city and exterior lighting
- Pedestrian zones and squares
- Underpasses and tunnels
- Cellar and garage lighting
- Airports, shipyard and harbour facilities
- Bridges, crossings and monuments
