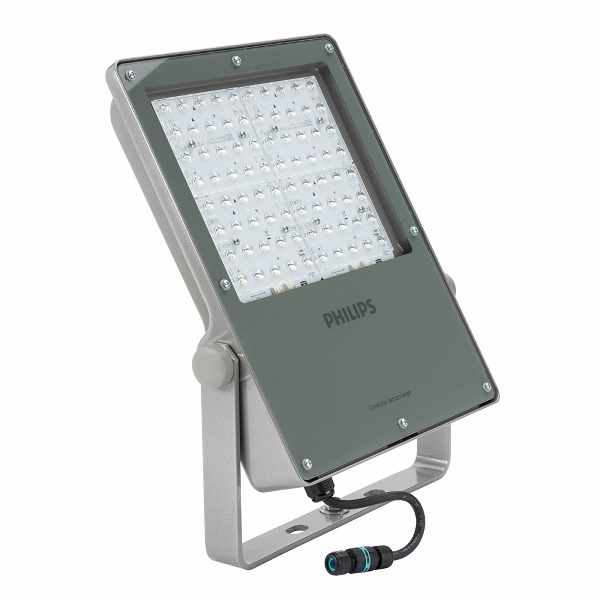

BVP130 LED300-4S/740 OFA52 - Philips
CoreLine Tempo Large
Availability:
More items are on the way
Net price:
Net Price:
319.65 € *
+0.08 € WEEE fee
Gross price: 380.48 €
per pcs
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
PU at 1 pcs
*
All prices excl. VAT and excl. Shipping.
Item details
Manufacturer:
PHILIPS
Item No.:
41192
GTIN:
8720169558984
Product family:
CoreLine Tempo Large
Wattage (W):
209
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
70-79
Luminous Flux (lm):
30000
Luminous intensity:
1495
Beam Angle (°):
52x102
Life Time (h):
70000
Dimmable:
No
Size (LxWxH in mm):
340,5x422x40
Ambient Temperature:
-40° bis +45°C
IP protection class:
66
Protection Class:
I
Impact protection (IK):
08
Flammability mark:
Zur Montage auf leicht entflammbaren Oberflächen
Photobiological risk group:
1
Light source replaceable:
No
Casing color:
Grau
Casing material:
Aluminium, pulverbeschichtet, gebürstet
Mounting method:
• Anbaumontage
• Wand-, Traversen- und Podest-/Bodenmontage
Operating device:
LED-Betriebsgerät stromgesteuert
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
10% (100.000 h / 25°C)
Glare restriction (UGR):
0
Color Consistency (SDCM):
<3
Total Harmonic Distortion (THD):
5,32
Luminous Efficiency (lm/W):
139
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
96% (100.000 h / 25°C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
8 (B16) und 13 (C16)
Integrated emergency power supply:
No
No. Of Poles:
3
Strobe Effect Value (SVM):
0,07
Wiring Type:
Abschluss
Cover Material:
Glas transparent
Application area:
Entertainment, culture and sport
- Theme parks and amusement parks
- Sports facilities and arenas
Industry and manufactoring trade
- Storage, hall and logistics lighting
Street, city and exterior lighting
- Pedestrian zones and squares
- Underpasses and tunnels
- Cellar and garage lighting
- Airports, shipyard and harbour facilities
- Bridges, crossings and monuments
Downloads
Manufacturer datasheet
manufacturer: Philips
Address and contact
Signify GmbH
Röntgenstraße 22
22335 Hamburg
Deutschland
Röntgenstraße 22
22335 Hamburg
Deutschland
website: https://www.lighting.philips.de/
International address and contact
Signify head office
High Tech Campus 48
5656 AE Eindhoven
The Netherlands
High Tech Campus 48
5656 AE Eindhoven
The Netherlands
website: https://www.lighting.philips.com
