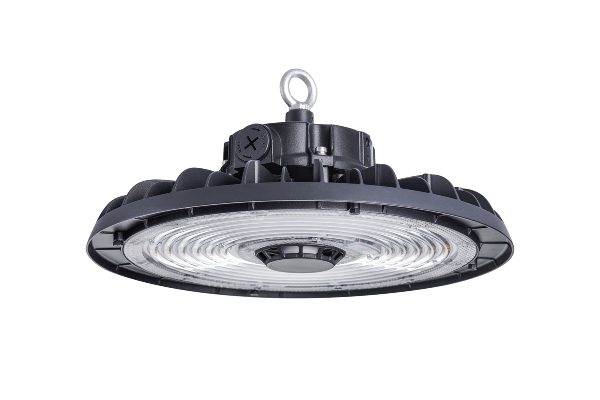

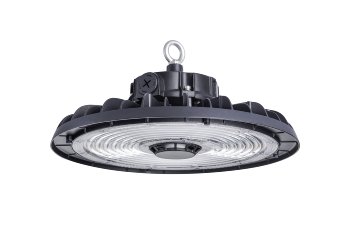

BY030P LED150_220_280S/840_50_65 PSU WB - PHILIPS
Ledinaire Highbay - PHILIPS
Availability:
More items are on the way
Net price:
Net Price:
97.44 € *
+0.08 € WEEE fee
Gross price: 116.05 €
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: pcs
*
All prices excl. VAT and excl. Shipping.
Item details
Manufacturer:
PHILIPS
Item No.:
42628
GTIN:
8720169758971
Product family:
Ledinaire Highbay - PHILIPS
Wattage (W):
195
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Tunable White
Colour Rendering Index (Ra):
>80
Luminous Flux (lm):
28000
Beam Angle (°):
90
Life Time (h):
70000
Dimmable:
No
Diameter (mm):
320
Size (LxWxH in mm):
119
Ambient Temperature:
-30 … +50°C
IP protection class:
65
Protection Class:
I
Impact protection (IK):
07
Flammability mark:
Zur Befestigung an normal entflammbaren Oberflächen (F-Zeichen)
Photobiological risk group:
1
Flickering:
1
Control interface:
-
Casing color:
Aluminium und Schwarz
Casing material:
Aluminiumdruckguss
Mounting method:
Aufbau
Operating device:
Netzteil
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
7,5% (50.000 h / 25 °C)
Glare restriction (UGR):
31
Color Consistency (SDCM):
=5
Total Harmonic Distortion (THD):
20%
Luminous Efficiency (lm/W):
155
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
20% (50.000 h / 25 °C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
9 (B16) und 11 (C16)
Suitable For Emergency Light:
No
Integrated emergency power supply:
No
No. Of Poles:
3
Strobe Effect Value (SVM):
0,9
Wiring Type:
Abschluss
Cover Material:
Kunststoff, klar
Item description
"Highbay" refers to an industrial luminaire for high ceilings that is used in warehouses, production facilities, sports halls or other large rooms with high ceilings. The BY030P LED high bay luminaire from Philips is particularly energy-saving, durable and offers high light output for large indoor areas. It is an economical solution for replacing conventional high bay luminaires with halogen or sodium vapor lamps.
Application area:
Office and building lighting
- Foyers, reception halls, entrance lighting
Industry and manufactoring trade
- Storage, hall and logistics lighting
- Lighting for assembly lines
