BY121P G5 LED150S/840 PSD WB - PHILIPS

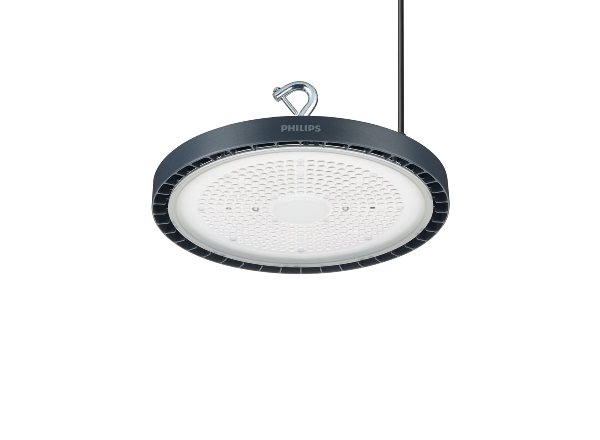

CoreLine Highbay Gen5 - PHILIPS
Availability:
More items are on the way
Net price:
Net Price:
169.62 € *
+0.08 € WEEE fee
Gross price: 201.94 €
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: pcs
*
All prices excl. VAT and excl. Shipping.
Item details
EEL:
C
Manufacturer:
PHILIPS
Item No.:
42631
GTIN:
8719514955998
Product family:
CoreLine Highbay Gen5 - PHILIPS
Wattage (W):
102
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
>80
Luminous Flux (lm):
15000
Beam Angle (°):
85x85
Life Time (h):
75000
Dimmable:
Yes
Diameter (mm):
330
Size (LxWxH in mm):
99
Ambient Temperature:
-30 … +50°C
IP protection class:
65
Protection Class:
I
Impact protection (IK):
08
Flammability mark:
Zur Montage auf normal entflammbaren Oberflächen (F-Zeichen)
Photobiological risk group:
1
Light source replaceable:
No
Control interface:
DALI-regelbar
Casing color:
Grau
Casing material:
Aluminiumdruckguss
Mounting method:
Pendelaufhängung
Operating device:
Netzteil mit DALI-Schnittstelle
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
5% (50.000 h / 25 °C)
Glare restriction (UGR):
25
Color Consistency (SDCM):
=5
Total Harmonic Distortion (THD):
15%
Luminous Efficiency (lm/W):
147
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
15% (50.000 h / 25 °C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
8 (B16) und 13 (C16)
Suitable For Emergency Light:
No
Integrated emergency power supply:
No
No. Of Poles:
3
Strobe Effect Value (SVM):
1
Wiring Type:
Abschluss
Cover Material:
Kunststoff, klar
Item description
The CoreLine Highbay Gen5 is available with narrow or wide beams and can therefore be tailored precisely to your lighting plan. It is reliable, durable and easy to use. With little maintenance, significant energy savings can be expected. You can connect the Phillips CoreLine Highbay Gen5 to any lighting system networked with Ineract.
Application area:
Entertainment, culture and sport
- Cultural buildings, museums, galleries, trade fair and exhibition halls
Lighting for hotel and restaurant industry
- Reception and lobby
Industry and manufactoring trade
- Storage, hall and logistics lighting
- Lighting for assembly lines
