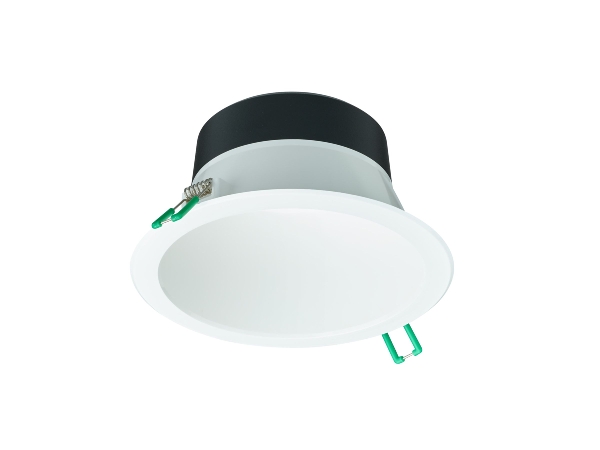

DN142B 10S/840 PSD-E WR ELB3 - PHILIPS
CoreLine Downlight Gen 5 - PHILIPS
Availability:
More items are on the way
Net price:
Net Price:
185.68 € *
+0.08 € WEEE fee
Gross price: 221.05 €
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: pcs
*
All prices excl. VAT and excl. Shipping.
Item details
EEL:
C
Manufacturer:
PHILIPS
Item No.:
42742
GTIN:
8720169109056
Product family:
CoreLine Downlight Gen 5 - PHILIPS
Wattage (W):
14,9
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
>80
Luminous Flux (lm):
1200
Luminous intensity:
658
Beam Angle (°):
84
Life Time (h):
80000
Dimmable:
Yes
Diameter (mm):
162
Size (LxWxH in mm):
82
Ambient Temperature:
-20 … +40°C
IP protection class:
20
Protection Class:
II
Impact protection (IK):
03
Flammability mark:
Zur Befestigung an normal entflammbaren Oberflächen (F-Zeichen)
Photobiological risk group:
1
Light source replaceable:
No
Control interface:
DALI-regelbar
Casing color:
Weiß
Casing material:
Polykarbonat
Mounting method:
Decke, Einbau, Seilsystem
Operating device:
Netzteil mit DALI-Schnittstelle (extern)
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
5% (50.000 h / 25 °C)
Glare restriction (UGR):
25
Color Consistency (SDCM):
=5
Total Harmonic Distortion (THD):
32%
Luminous Efficiency (lm/W):
80
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
20% (50.000 h / 25 °C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
120 (B16) und 204 (C16)
Suitable For Emergency Light:
Yes
Integrated emergency power supply:
Yes
No. Of Poles:
2
Strobe Effect Value (SVM):
1
Wiring Type:
geeignet für Durchgangsverdrahtung
Cover Material:
Kunststoff, ohne Abdeckung
Application area:
Lighting for hotel and restaurant industry
- Restaurant and Bar lighting
- Reception and lobby
Office and building lighting
- Open plan and self-contained offices
- Foyers, reception halls, entrance lighting
- Conference rooms
Downloads
Manufacturer datasheet
manufacturer: Philips
Address and contact
Signify GmbH
Röntgenstraße 22
22335 Hamburg
Deutschland
Röntgenstraße 22
22335 Hamburg
Deutschland
website: https://www.lighting.philips.de/
International address and contact
Signify head office
High Tech Campus 48
5656 AE Eindhoven
The Netherlands
High Tech Campus 48
5656 AE Eindhoven
The Netherlands
website: https://www.lighting.philips.com
