DN142B 20S/830 PSD-E WR ELB3 - PHILIPS

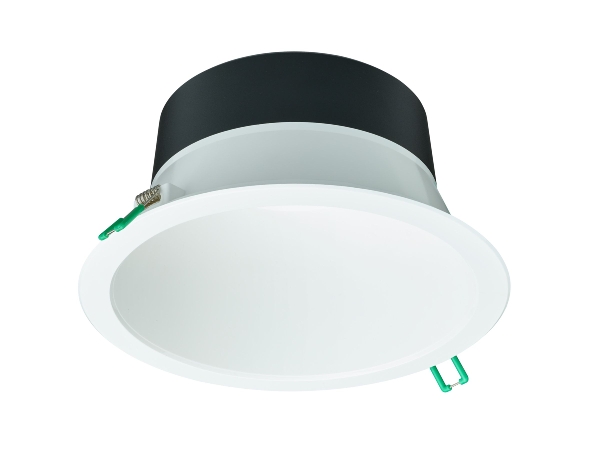

CoreLine Downlight Gen 5 - PHILIPS
Availability:
More items are on the way
Net price:
Net Price:
190.85 € *
+0.08 € WEEE fee
Gross price: 227.21 €
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: pcs
*
All prices excl. VAT and excl. Shipping.
Item details
EEL:
C
Manufacturer:
PHILIPS
Item No.:
42741
GTIN:
8720169109070
Product family:
CoreLine Downlight Gen 5 - PHILIPS
Wattage (W):
24,5
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
3000
Light Color:
Warm White
Colour Rendering Index (Ra):
>80
Luminous Flux (lm):
2350
Luminous intensity:
1275
Beam Angle (°):
84
Life Time (h):
80000
Dimmable:
Yes
Diameter (mm):
216
Size (LxWxH in mm):
105
Ambient Temperature:
-20 … +40°C
IP protection class:
20
Protection Class:
II
Impact protection (IK):
03
Flammability mark:
Zur Befestigung an normal entflammbaren Oberflächen (F-Zeichen)
Photobiological risk group:
1
Light source replaceable:
No
Control interface:
DALI-regelbar
Casing color:
Weiß
Casing material:
Polykarbonat
Mounting method:
Decke, Einbau, Seilsystem
Operating device:
Netzteil mit DALI-Schnittstelle (extern)
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
5% (50.000 h / 25 °C)
Glare restriction (UGR):
25
Color Consistency (SDCM):
=5
Total Harmonic Distortion (THD):
35%
Luminous Efficiency (lm/W):
96
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
20% (50.000 h / 25 °C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
100 (B16) und 170 (C16)
Suitable For Emergency Light:
Yes
Integrated emergency power supply:
Yes
No. Of Poles:
2
Strobe Effect Value (SVM):
1
Wiring Type:
geeignet für Durchgangsverdrahtung
Cover Material:
Kunststoff, ohne Abdeckung
Application area:
Lighting for hotel and restaurant industry
- Restaurant and Bar lighting
- Reception and lobby
Office and building lighting
- Open plan and self-contained offices
- Foyers, reception halls, entrance lighting
- Conference rooms
