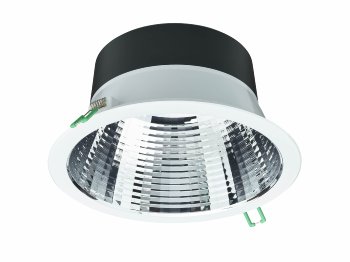

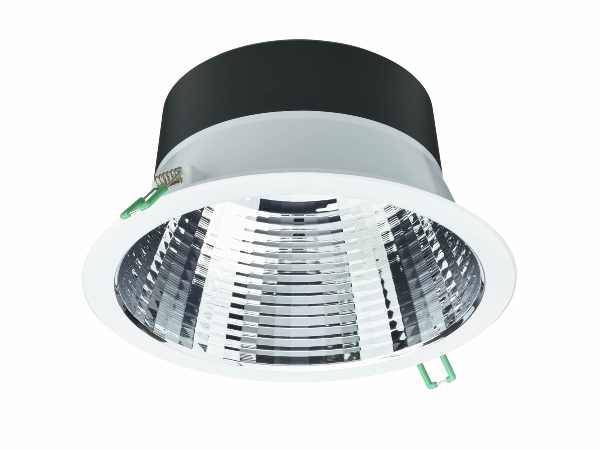

DN142B 20S/840 PSU-E UGR19 IP54 - Philips
CoreLine Downlight Gen 5
Availability:
More items are on the way
Net price:
Net Price:
44.11 € *
+0.08 € WEEE fee
Gross price: 52.59 €
per pcs
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
PU at 1 pcs
*
All prices excl. VAT and excl. Shipping.
Item details
Manufacturer:
PHILIPS
Item No.:
41231
GTIN:
8720169502901
Product family:
CoreLine Downlight Gen 5
Wattage (W):
21,12
Voltage (V):
220
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
80-89
Luminous Flux (lm):
2300
Luminous intensity:
2307
Beam Angle (°):
60
Life Time (h):
50000
Dimmable:
No
Diameter (mm):
216
Size (LxWxH in mm):
-x-x105
Ambient Temperature:
-20° bis +40°C
IP protection class:
54
Protection Class:
II
Impact protection (IK):
03
Flammability mark:
Zur Montage auf normal entflammbaren Oberflächen
Photobiological risk group:
1
Light source replaceable:
No
Casing color:
Weiß
Casing material:
Polycarbonat
Mounting method:
Deckenmontage, Einbaumontage
Operating device:
LED-Betriebsgerät stromgesteuert
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
5% (50.000 h / 25°C)
Glare restriction (UGR):
19
Color Consistency (SDCM):
<5
Total Harmonic Distortion (THD):
35
Luminous Efficiency (lm/W):
120
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
80% (50.000 h / 25°C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
100 (B16) und 170 (C16)
Suitable For Emergency Light:
No
Integrated emergency power supply:
No
No. Of Poles:
2
Strobe Effect Value (SVM):
1
Wiring Type:
geeignet für Durchgangsverdrahtung
Cover Material:
Kunststoff opal
Application area:
Lighting for hotel and restaurant industry
- Reception and lobby
- Corridors and thoroughfares
Office and building lighting
- Foyers, reception halls, entrance lighting
- Stairwell and corridors
Downloads
Manufacturer datasheet
manufacturer: Philips
Address and contact
Signify GmbH
Röntgenstraße 22
22335 Hamburg
Deutschland
Röntgenstraße 22
22335 Hamburg
Deutschland
website: https://www.lighting.philips.de/
International address and contact
Signify head office
High Tech Campus 48
5656 AE Eindhoven
The Netherlands
High Tech Campus 48
5656 AE Eindhoven
The Netherlands
website: https://www.lighting.philips.com
