DN560B LED12S/840 POE-E C WH - Philips

Availability: More items are on the way

Net price:

Net Price: 171.59 € *

+0.08 € WEEE fee

Gross price: 204.29 € per pcs

Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.

PU at 1 pcs

* All prices excl. VAT and excl. Shipping.

Item details

Manufacturer:

PHILIPS

Item No.:

39552

GTIN:

8718699970598

Wattage (W):

9,80

Voltage (V):

48-54

Frequency (Hz):

50-60

Colour Temperature (K):

4000

Light Color:

Neutral White

Colour Rendering Index (Ra):

80-89

Luminous Flux (lm):

1200

Life Time (h):

50000

Dimmable:

Yes

Diameter (mm):

164

Size (LxWxH in mm):

164x164x74

Grid dimension (mm):

164x164x74

Ambient Temperature:

10° bis 35°C

IP protection class:

Protection Class:

Impact protection (IK):

Flammability mark:

Zur Montage auf normal entflammbaren Oberflächen

Photobiological risk group:

Control interface:

Power over Ethernet

Controllable via:

Spezielle App

Casing color:

Weiß

Casing material:

Aluminiumdruckguss

Operating device:

stromgest. LED-Betriebsgerät

Control Gear included:

Yes

Failure rate aver. usage time/°C temp.:

10% (50.000h und 25°C)

Glare restriction (UGR):

Color Consistency (SDCM):

Total Harmonic Distortion (THD):

Luminous Efficiency (lm/W):

138

Light Output:

direkt

Luminous flux decline
aver. usage time/°C temp.:

90% (50.000h und 25°C)

Light Distribution:

symmetrisch

Suitable For Emergency Light:

Integrated emergency power supply:

No. Of Poles:

Strobe Effect Value (SVM):

0,19

Wiring Type:

geeignet für Durchgangsverdrahtung

Item description

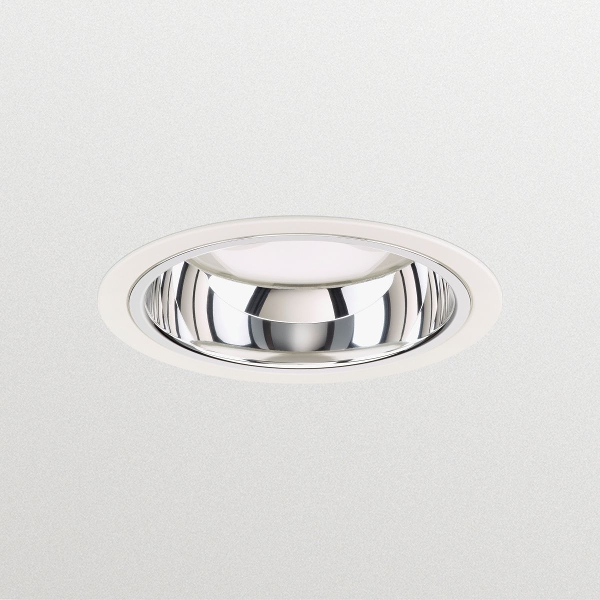

The DN560B LuxSpace2 Mini is a high-quality recessed luminaire that is also suitable for cable systems. With its lighting control via Power over Ethernet, it offers a simple way to control the light. The highly specular specular reflector with its wide beam distribution angle of 41-80° ensures optimum light distribution.
With a luminaire luminous efficacy of 138 lm/W and a colour consistency (McAdam ellipse) of SDCM <2, it offers high energy efficiency and uniform colour rendering.
The glare limitation (UGR) of 22 ensures a pleasant working atmosphere and reduces eye strain. The stroboscopic effect value SVM of 0.19 and the distortion factor (THD) of 20 ensure flicker-free lighting.

The replaceable control gear allows for easy maintenance and installation flexibility. The failure rate with an average service life of 50,000 is only 10%, which speaks for high quality and longevity.
The DN560B LuxSpace2 Mini is suitable for clamp mounting and has a mounting height/depth of 74 mm and a mounting diameter of 150 mm. It is also suitable for through-wiring.

Application area:

Lighting for hotel and restaurant industry

- Hotel rooms

- Reception and lobby

- Corridors and thoroughfares

Office and building lighting

- Open plan and self-contained offices

- Foyers, reception halls, entrance lighting

- Conference rooms

- Stairwell and corridors

Downloads

Manufacturer datasheet
