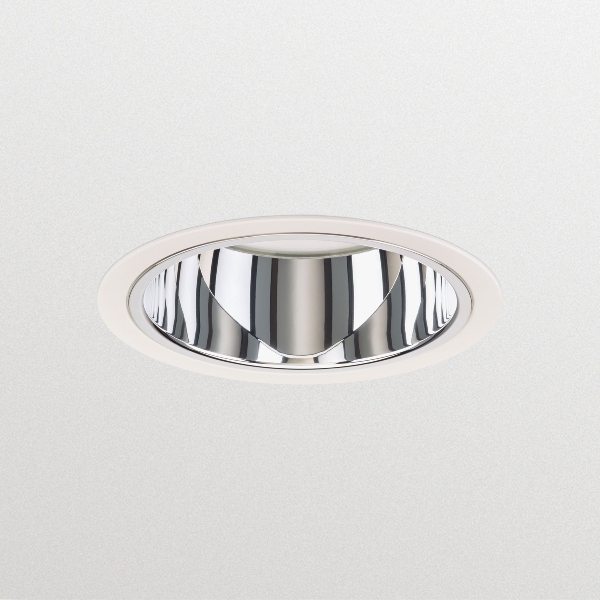

DN561B LED8S/840 PSU-E C WH - PHILIPS

LuxSpace Mini Einbaudownlight - PHILIPS

Availability: More items are on the way

Net price:

Net Price: 74.53 € *

+0.08 € WEEE fee

Gross price: 88.79 €

Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.

Unit: pcs

* All prices excl. VAT and excl. Shipping.

Item details

EEL:

Manufacturer:

PHILIPS

Item No.:

42652

GTIN:

8718699970390

Product family:

LuxSpace Mini Einbaudownlight - PHILIPS

Wattage (W):

Voltage (V):

220-240

Frequency (Hz):

50-60

Colour Temperature (K):

4000

Light Color:

Neutral White

Colour Rendering Index (Ra):

>80

Luminous Flux (lm):

840

Beam Angle (°):

Life Time (h):

100000

Dimmable:

Diameter (mm):

164

Size (LxWxH in mm):

Ambient Temperature:

+10 … +25°C

IP protection class:

Protection Class:

Impact protection (IK):

Flammability mark:

Zur Montage auf normal entflammbaren Oberflächen (F-Zeichen)

Photobiological risk group:

Light source replaceable:

Control interface:

Casing color:

Weiß

Casing material:

Aluminiumdruckguss

Mounting method:

Decke, Einbau

Operating device:

Netzgerät extern (Ein/Aus)

Control Gear included:

Yes

Failure rate aver. usage time/°C temp.:

5% (50.000 h / 25 °C)

Glare restriction (UGR):

Color Consistency (SDCM):

Total Harmonic Distortion (THD):

20%

Luminous Efficiency (lm/W):

140

Light Output:

direkt

Luminous flux decline
aver. usage time/°C temp.:

10% (50.000 h / 25 °C)

Light Distribution:

symmetrisch

Max. No. Luminaires Circuit Breaker:

65 (B16) und 110 (C16)

Integrated emergency power supply:

No. Of Poles:

Strobe Effect Value (SVM):

0,19

Wiring Type:

geeignet für Durchgangsverdrahtung

Cover Material:

Kunststoff, ohne Abdeckung

Item description

• First-class light output: Produces a soft, natural light for high visual comfort.
• Design: Thanks to the narrow bezel, the luminaire blends seamlessly into the ceiling; rimless version ideal for plasterboard ceilings.
• Optics: Four variants available: high-gloss, faceted, matt and white.
• Glare control: Various designs offer UGR values ??from 19 (high-gloss and faceted) to 22.
• Color options: Edge colors in high-gloss, white (RAL9010), gray, black (RAL9004), other RAL colors on request.
• Rimless version: Available for seamless integration.
• Driver options: Emergency power and DC voltage compatibility, switchable and DALI dimmable from 1-100%.
• Additional options: protective glass in clear or opal (PG/PGO) for IP54 protection class, emergency lighting, decorative accessories, through-wiring, Wieland connection.
• Areas of application: offices, retail, hospitals, hotels, airports

Application area:

Lighting for hotel and restaurant industry

- Corridors and thoroughfares

Office and building lighting

- Open plan and self-contained offices

- Conference rooms

Retail, shops and supermarkets

- Sales areas

Downloads

Manufacturer datasheet

manufacturer: Philips
