DN571B LED20S/830 POE-E C WH - Philips

Availability: More items are on the way

Net price:

Net Price: 203.88 € *

+0.08 € WEEE fee

Gross price: 242.71 € per pcs

Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.

PU at 1 pcs

* All prices excl. VAT and excl. Shipping.

Item details

Manufacturer:

PHILIPS

Item No.:

39562

GTIN:

8718699970628

Wattage (W):

16,40

Voltage (V):

48-54

Frequency (Hz):

50-60

Colour Temperature (K):

3000

Light Color:

Warm White

Colour Rendering Index (Ra):

80-89

Luminous Flux (lm):

2000

Life Time (h):

50000

Dimmable:

Yes

Diameter (mm):

214

Size (LxWxH in mm):

214x214x119

Grid dimension (mm):

214x214x119

Ambient Temperature:

10° bis 35°C

IP protection class:

Protection Class:

Impact protection (IK):

Flammability mark:

Zur Montage auf normal entflammbaren Oberflächen

Photobiological risk group:

Control interface:

Power over Ethernet

Controllable via:

Spezielle App

Casing color:

Weiß

Casing material:

Aluminiumdruckguss

Operating device:

stromgest. LED-Betriebsgerät

Control Gear included:

Yes

Failure rate aver. usage time/°C temp.:

10% (50.000h und 25°C)

Glare restriction (UGR):

Color Consistency (SDCM):

Total Harmonic Distortion (THD):

Luminous Efficiency (lm/W):

134

Light Output:

direkt

Luminous flux decline
aver. usage time/°C temp.:

90% (50.000h und 25°C)

Light Distribution:

symmetrisch

Suitable For Emergency Light:

Integrated emergency power supply:

No. Of Poles:

Strobe Effect Value (SVM):

0,19

Wiring Type:

geeignet für Durchgangsverdrahtung

Item description

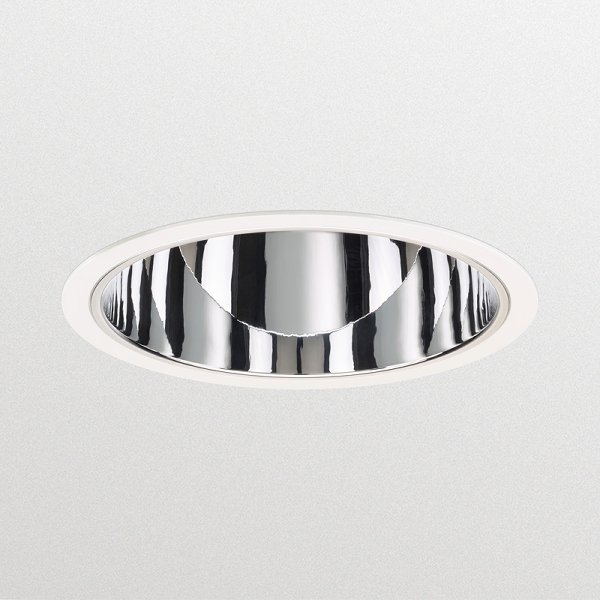

Product: DN571B | LUXSPACE 2 COMPACT DEEP 830 Warm white
• Lighting control with Power over Ethernet
• High-gloss specular reflector with symmetrical light distribution and wide beam angle
• Suitable for wire system or clamp mounting
• Replaceable control gear
• Glow wire test according to IEC 60695-2-11 = 650°C 30s
• Luminaire luminous efficacy = 134 lm/W
• Colour consistency (McAdam ellipse) = SDCM <2
• Glare limitation (UGR) = 19
• Distortion factor (THD) = 20
• Stroboscopic effect value SVM = 0.19
• Luminous flux reduction at mean service life of 50,000 h at 25 °C ambient temperature = 90%
• Failure rate at average service life of 50,000 h at 25 °C ambient temperature = 10%
• Suitable for through-wiring
• Number of poles = 4
• Conductor cross-section = 2.5mm²

Application area:

Lighting for hotel and restaurant industry

- Hotel rooms

- Reception and lobby

- Corridors and thoroughfares

Office and building lighting

- Open plan and self-contained offices

- Foyers, reception halls, entrance lighting

- Conference rooms

- Stairwell and corridors

Downloads

Manufacturer datasheet
