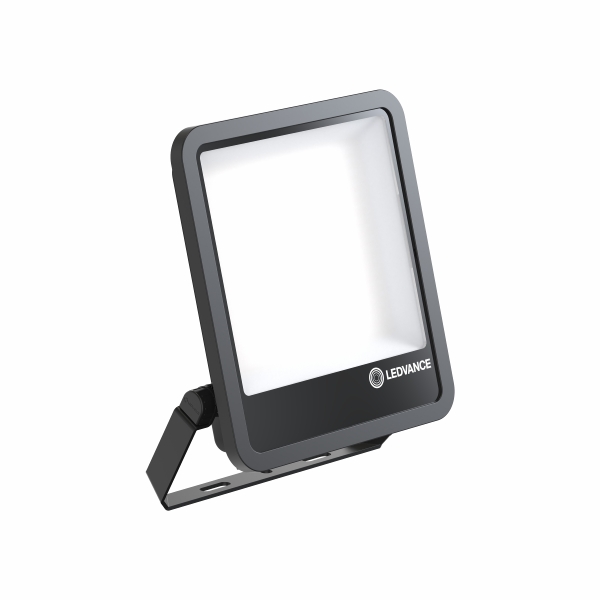

FL 250 P 167W 25KLM 830 PS SY100 BK - LEDVANCE
Item No.: 41835
Sirius HRI 440W S OSRAM
Item No.: 26313
FL 250 P 167W 25KLM 830 PS SY100 BK - LEDVANCE
FLOODLIGHT GEN 4 - LEDVANCE
Availability:
More items are on the way
Net price:
Net Price:
169.00 € *
+0.08 € WEEE fee
Gross price: 201.21 €
per pcs
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: PU
PU at 1 pcs
PU at 1 pcs
*
All prices excl. VAT and excl. Shipping.
Item details
Manufacturer:
LEDVANCE
Item No.:
41835
GTIN:
4099854306563
Product family:
FLOODLIGHT GEN 4 - LEDVANCE
Wattage (W):
167
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
3000
Light Color:
Warm White
Colour Rendering Index (Ra):
80
Luminous Flux (lm):
23400
Beam Angle (°):
100
Life Time (h):
100000
Dimmable:
No
Size (LxWxH in mm):
329x61x409
Ambient Temperature:
-30…+50 °C
IP protection class:
66
Protection Class:
I
Impact protection (IK):
08
Photobiological risk group:
1
Light source replaceable:
No
Casing color:
Schwarz
Casing material:
Aluminium
Mounting method:
Wand, Mast, Boden, Decke
Operating device:
Integrierter LED-Treiber
Control Gear included:
Yes
Color Consistency (SDCM):
5
Luminous Efficiency (lm/W):
140
Max. No. Luminaires Circuit Breaker:
4 (B16) und 7 (C16)
Suitable For Emergency Light:
No
Integrated emergency power supply:
No
Strobe Effect Value (SVM):
=0.9
Wiring Type:
Kabel, 3-polig
Cover Material:
Glas
Item description
Product benefits
- Breather membrane to optimize air exchange, without compromising IP protection
- Highly versatile due to selectable power steps (Multi Lumen) on the housing [167 W - 23400 lm / 150 W - 21060 lm]
- Robust cable gland with integrated waterstop function
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- Bright, robust and durable
- Energy savings of up to 90 % compared to halogen lamp floodlights
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP66)
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
- Public areas
- Building facades
- Construction areas
- Parking
Product features
- High luminous efficacy: up to 150 lm/W
- Type of protection: IP66
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Reflector-based, symmetric light distribution with 100° x 100° beam angle
- Mounting bracket with 30° angle and wide rotation area
Safety advice
- Max. wind load surface 0.045 m²
- Breather membrane to optimize air exchange, without compromising IP protection
- Highly versatile due to selectable power steps (Multi Lumen) on the housing [167 W - 23400 lm / 150 W - 21060 lm]
- Robust cable gland with integrated waterstop function
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- Bright, robust and durable
- Energy savings of up to 90 % compared to halogen lamp floodlights
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP66)
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
- Public areas
- Building facades
- Construction areas
- Parking
Product features
- High luminous efficacy: up to 150 lm/W
- Type of protection: IP66
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Reflector-based, symmetric light distribution with 100° x 100° beam angle
- Mounting bracket with 30° angle and wide rotation area
Safety advice
- Max. wind load surface 0.045 m²
Application area:
Entertainment, culture and sport
- Architectural stage lighting
Street, city and exterior lighting
- Facade lighting
