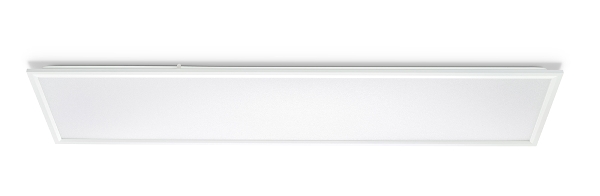

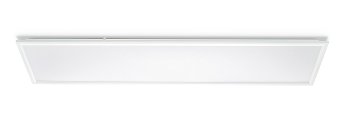

RC132V G5 36S/840 PSD W30L120 OC - Philips
CoreLine Panel
Availability:
More items are on the way
Net price:
Net Price:
79.27 € *
+0.08 € WEEE fee
Gross price: 94.43 €
per pcs
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
PU at 1 pcs
*
All prices excl. VAT and excl. Shipping.
Item details
Manufacturer:
PHILIPS
Item No.:
41010
GTIN:
8719514950139
Product family:
CoreLine Panel
Wattage (W):
28,50
Voltage (V):
220-240
Frequency (Hz):
50-66
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
80-89
Luminous Flux (lm):
3600
Beam Angle (°):
90
Life Time (h):
100000
Dimmable:
Yes
Size (LxWxH in mm):
1195x295x67
Grid dimension (mm):
1200x300
Ambient Temperature:
-10° bis +40°C
IP protection class:
20
Protection Class:
II
Impact protection (IK):
03
Flammability mark:
Zur Montage auf normal entflammbaren Oberflächen
Photobiological risk group:
0
Flickering:
1
Light source replaceable:
No
Control interface:
DALI-regelbar
Casing color:
Weiß
Casing material:
Stahl, pulverbeschichtet
Mounting method:
Deckenmontage
Operating device:
Netzteil mit DALI-Schnittstelle
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
5% (50.000 h / 25°C)
Glare restriction (UGR):
19
Color Consistency (SDCM):
<3
Total Harmonic Distortion (THD):
20
Luminous Efficiency (lm/W):
125
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
90% (50.000 h / 25°C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
14 (B16) und 21 (C16)
Suitable For Emergency Light:
No
Integrated emergency power supply:
No
No. Of Poles:
5
Strobe Effect Value (SVM):
0,40
Wiring Type:
Abschluss
Cover Material:
Kunststoff strukturiert
Application area:
Entertainment, culture and sport
- Cultural buildings, museums, galleries, trade fair and exhibition halls
Lighting for hotel and restaurant industry
- Hotel rooms
- Reception and lobby
- Corridors and thoroughfares
Office and building lighting
- Open plan and self-contained offices
- Stock and utility room lighting
- Foyers, reception halls, entrance lighting
- Conference rooms
- Stairwell and corridors
Retail, shops and supermarkets
- Sales areas
