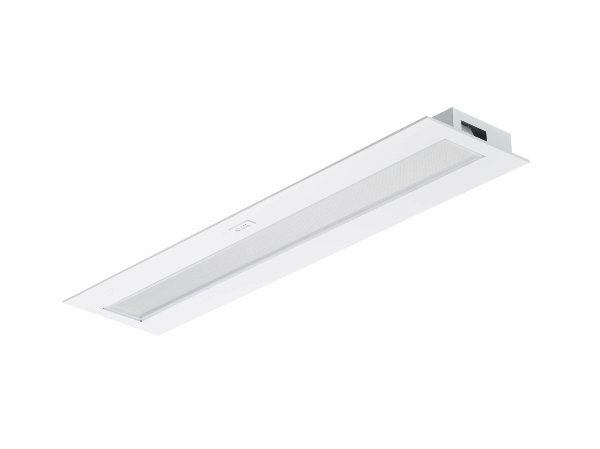

RC342B LED36S/940 SRD W31L125 VPC PCS U4 - Philips
Item No.: 40545
RC342B LED36S/940 SRD W31L125 VPC PCS U4 - Philips
Flexblend Recessed
Availability:
More items are on the way
PU at 1 pcs
Item details
Manufacturer:
PHILIPS
Item No.:
40545
GTIN:
8719514708358
Product family:
Flexblend Recessed
Wattage (W):
24
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
90-100
Luminous Flux (lm):
3600
Beam Angle (°):
81x85
Life Time (h):
50000
Dimmable:
Yes
Energy Consumption (kWh/1000h):
24
Size (LxWxH in mm):
1247x310x60
Ambient Temperature:
+10° bis +40°C
IP protection class:
54
Protection Class:
I
Impact protection (IK):
02
Flammability mark:
Zur Montage auf normal entflammbaren Oberflächen
Photobiological risk group:
0
Flickering:
1
Light source replaceable:
No
Control interface:
DALI- und SystemReady-Schnittstelle
Controllable via:
Interact Office
Casing color:
Weiß
Casing material:
Stahl, lackiert
Mounting method:
Deckeneinbau
Operating device:
Netzteil mit DALI- und SystemReady-Schnittstelle, Interact Ready
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
5% (50.000 h / 25°C)
Glare restriction (UGR):
19
Color Consistency (SDCM):
<3
Total Harmonic Distortion (THD):
20
Luminous Efficiency (lm/W):
141
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
85% (50.000 h / 25°C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
24 (B16) und 40 (C16)
Suitable For Emergency Light:
No
Integrated emergency power supply:
No
No. Of Poles:
3
Strobe Effect Value (SVM):
0,40
Wiring Type:
Abschluss
Cover Material:
Kunststoff strukturiert
Application area:
Lighting for hotel and restaurant industry
- Hotel rooms
Office and building lighting
- Open plan and self-contained offices
- Conference rooms
Downloads
Data sheet
