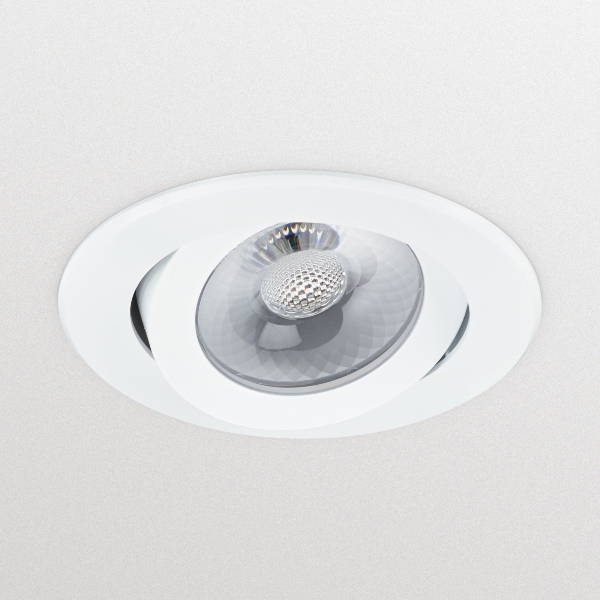

RS151B LED12-WB-/840 D78 PSD PI10 WH - PHILIPS
CoreLine Einbaustrahler Gen2 - PHILIPS
Availability:
More items are on the way
Net price:
Net Price:
60.08 € *
+0.08 € WEEE fee
Gross price: 71.59 €
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: pcs
*
All prices excl. VAT and excl. Shipping.
Item details
EEL:
E
Manufacturer:
PHILIPS
Item No.:
42930
GTIN:
8719514548251
Product family:
CoreLine Einbaustrahler Gen2 - PHILIPS
Wattage (W):
12,3
Voltage (V):
220-240
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
>80
Luminous Flux (lm):
1320
Beam Angle (°):
38
Life Time (h):
50000
Dimmable:
Yes
Diameter (mm):
95
Size (LxWxH in mm):
60
Ambient Temperature:
0 … +35°C
IP protection class:
20
Protection Class:
II
Impact protection (IK):
03
Flammability mark:
Zur Befestigung an normal entflammbaren Oberflächen (F-Zeichen)
Photobiological risk group:
1
Flickering:
1
Control interface:
DALI-regelbar
Casing color:
Weiß
Casing material:
Aluminiumdruckguss
Mounting method:
Decke, Einbau
Operating device:
Netzteil mit DALI-Schnittstelle (extern)
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
5% (50.000 h / 25 °C)
Glare restriction (UGR):
24
Color Consistency (SDCM):
=5
Total Harmonic Distortion (THD):
15%
Luminous Efficiency (lm/W):
107
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
30% (50.000 h / 25 °C)
Light Distribution:
symmetrisch
Max. No. Luminaires Circuit Breaker:
20 (B16) und 34 (C16)
Integrated emergency power supply:
No
No. Of Poles:
2
Strobe Effect Value (SVM):
0,4
Wiring Type:
Abschluss
Cover Material:
Kunststoff, strukturiert
Application area:
Lighting for hotel and restaurant industry
Office and building lighting
- Open plan and self-contained offices
- Conference rooms
- Stairwell and corridors
Retail, shops and supermarkets
- Sales areas
