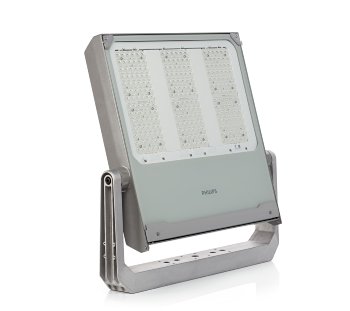

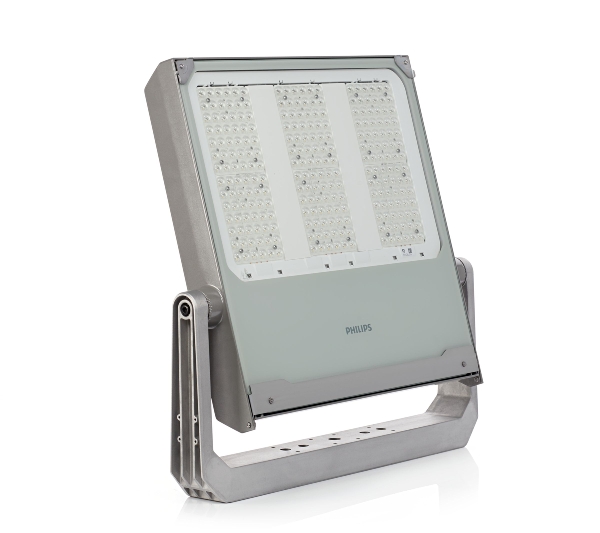

BVP657 LED930-4S/740 PSU A55-MB ALU - PHILIPS
Clearflood gen2 - PHILIPS
Availability:
More items are on the way
Net price:
Net Price:
974.64 € *
+0.08 € WEEE fee
Gross price: 1,159.92 €
Our offers are addressed exclusively to entrepreneurs. We do not conclude contracts with consumers.
Unit: pcs
*
All prices excl. VAT and excl. Shipping.
Item details
EEL:
D
Manufacturer:
PHILIPS
Item No.:
43308
GTIN:
8720169796270
Product family:
Clearflood gen2 - PHILIPS
Wattage (W):
530
Voltage (V):
230
Frequency (Hz):
50-60
Colour Temperature (K):
4000
Light Color:
Neutral White
Colour Rendering Index (Ra):
70
Luminous Flux (lm):
76900
Luminous intensity:
85780
Beam Angle (°):
5-17x97
Life Time (h):
100000
Dimmable:
No
Size (LxWxH in mm):
711x720x139
Ambient Temperature:
-40 … +50°C
IP protection class:
66
Protection Class:
I
Impact protection (IK):
08
Flammability mark:
-
Photobiological risk group:
2
Control interface:
-
Casing color:
Aluminium
Casing material:
Aluminium
Mounting method:
Aufbau, Wand, Decke, Traversen
Operating device:
Netzteil
Control Gear included:
Yes
Failure rate aver. usage time/°C temp.:
10% (100.000 h / 25 °C)
Color Consistency (SDCM):
=5
Total Harmonic Distortion (THD):
6%
Luminous Efficiency (lm/W):
133
Light Output:
direkt
Luminous flux decline
aver. usage time/°C temp.:
aver. usage time/°C temp.:
6% (100.000 h / 25 °C)
Light Distribution:
asymmetrisch
Max. No. Luminaires Circuit Breaker:
3 (B16) und 5 (C16)
Integrated emergency power supply:
Yes
No. Of Poles:
3
Strobe Effect Value (SVM):
0,07
Wiring Type:
Abschluss
Cover Material:
Glas, klar
Application area:
Entertainment, culture and sport
- Sports facilities and arenas
Industry and manufactoring trade
- Storage, hall and logistics lighting
Street, city and exterior lighting
- Airports, shipyard and harbour facilities
